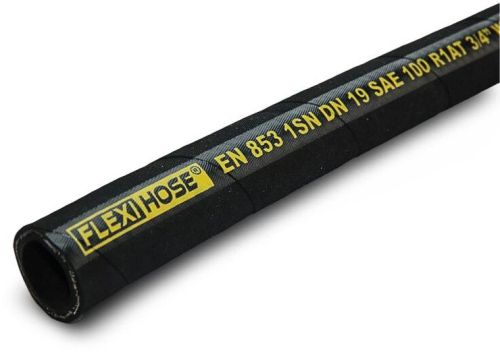

R1 Hydraulic Hose


R1 Hydraulic Hose

Specifications

Application Hydraulic System With Petroleum Or Water Based Fluid & For Fuel And Lubricating Oils.
Lining Black Oil Resistant Synthetic Rubber Compound.
Reinforcement Single Braid Of High Tensile Brass Coated Steel Wire.
Cover Synthetic Rubber Compound Resistant To Weather, Ageing And Abrasion.
Temperature Service Temperature - 40oC To +100oC

We are engaged in manufacturing and supplying high quality R1 Hydraulic Hose. The R1 Hydraulic Hoses that we offer are manufactured in our well-equipped unit using high quality material and latest technology. Our hoses are durable and reliable. These are highly demanded in the market owing to their quality and uniform thickness. Our clients can obtain these R1 Hydraulic Hoses at modest price from us.


Yes! I am interested

Submit Your Requirement


Specifications

Nominal Bore Mean O.D. Maximum Working Pressure Minimum Burst Pressure
INCH MM MM PSI BAR PSI BAR
1/4” 6.00 14.00 3265 225 13060 900
5/16” 8.00 15.70 3120 215 12480 860
3/8” 10.00 18.00 2610 180 10440 720
1/2” 12.50 21.50 2320 160 9280 640
3/4” 20.00 28.50 1525 105 6100 420
1" 25.00 36.00 1275 88 5100 352
